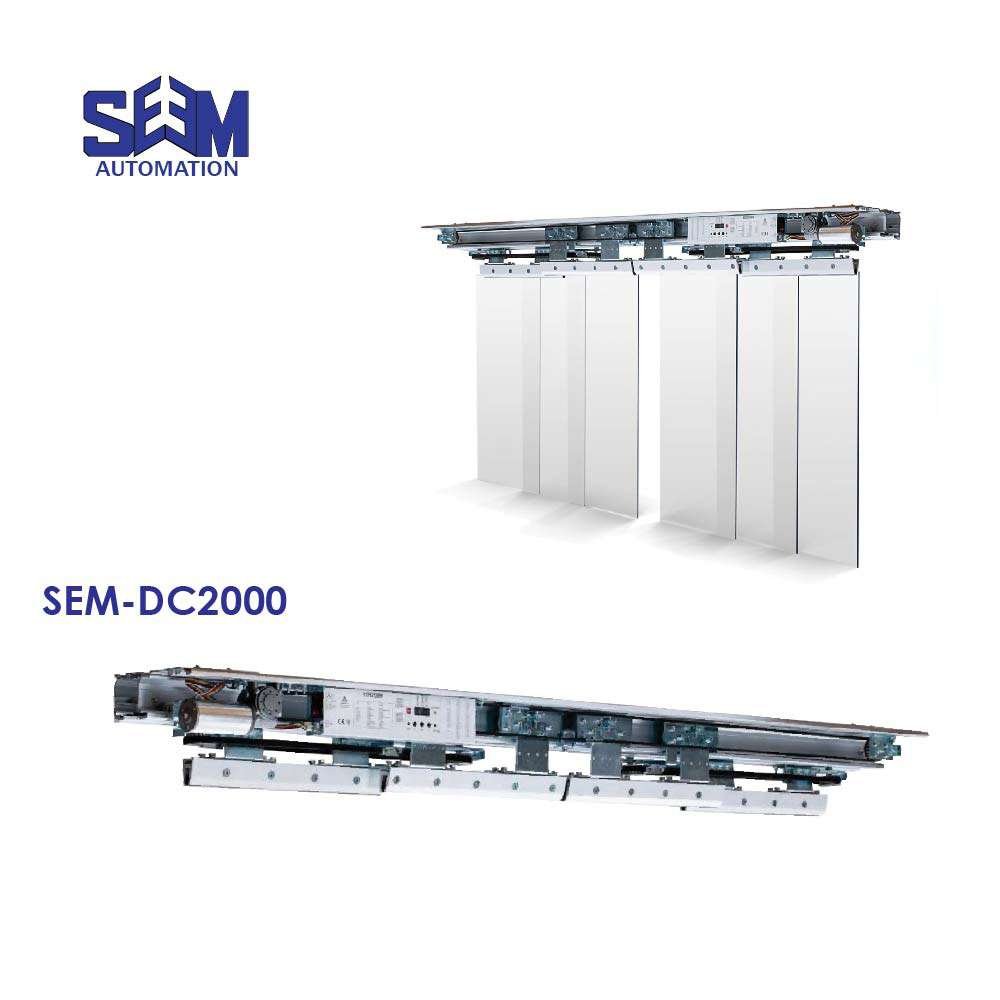

Automatic Telescopic Sliding Door Operator SEM DC2000

The SEM DC2000 is a high-performance telescopic sliding door operator designed for commercial spaces requiring efficient, adaptable access solutions. With support for both single and double-opening modes, it accommodates a wide range of door sizes, making it ideal for narrow entrances and larger doorways alike. Equipped with a 100W DC brushless motor and advanced microprocessor control, this operator ensures smooth, quiet operation with self-learning capabilities for optimal performance.

Key Features of Automatic Telescopic Sliding Door Operator SEM DC2000:

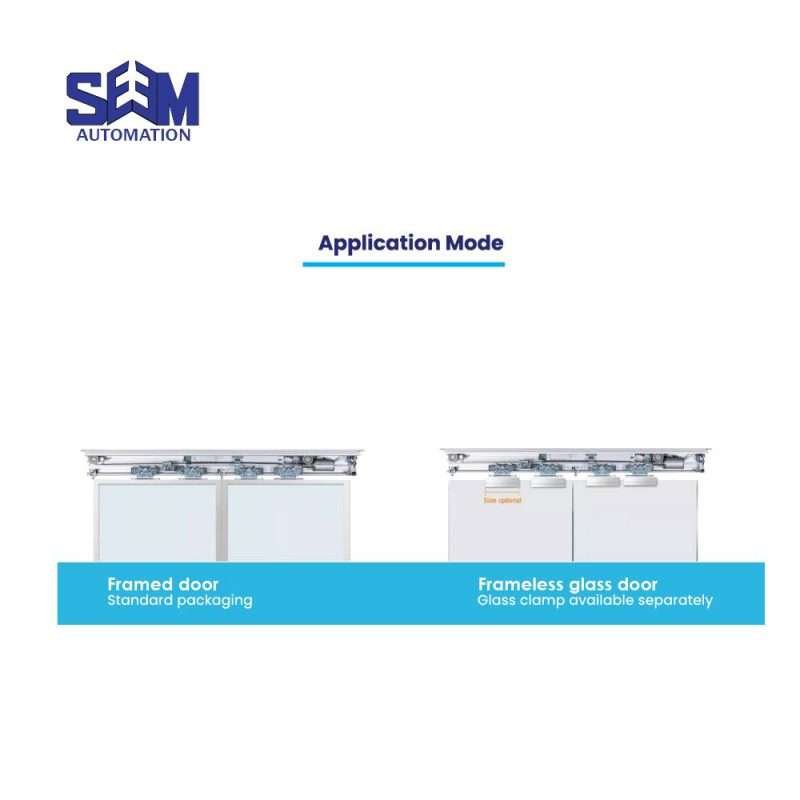

  • Versatile Door Modes: Supports single-opening and double-opening configurations for flexible installation.
  • High Door Weight Capacity: Handles up to 2×150 kg for single opening and up to 4×120 kg for double-opening configurations.
  • Adjustable Speeds & Timing: Customize opening/closing speeds (15-50 cm/s) and opening time (up to 20 seconds).
  • Brushless DC Motor: Durable 100W motor with low noise (under 40 dB) and long lifespan.
  • Smart Safety Features: Includes bounce-back function on resistance and interlock support for multiple access systems.
  • Humanized Lock Control: Enhanced control over electronic locks, supporting high-security applications.
  • Efficient Space Usage: Perfect for narrow or wide entrances with telescopic doors that operate at a 2:1 speed ratio.

Why Choose Automatic Telescopic Sliding Door Operator SEM DC2000?

The SEM DC2000 is a top choice for commercial environments, offering seamless operation, enhanced safety, and optimized space efficiency. It’s ideal for narrow entrances, wide doorways, or anywhere that requires a reliable, smooth telescopic door solution.

ข้อมูลเพิ่มเติม

Model

SEM – DC2000

Max Weight (single open)

2 x 150 Kg

Max Weight (Double open)

4 x 120 Kg

Door Leaf Width

150 – 1500 mm ( Customizable )

Opening speed

100 ~ 550 mm/s (Adjustable)

Closing speed

100 ~ 550 mm/s (Adjustable)

Holding Time

0 ~ 60s Adjustable

Motor Details

24V 100W 2300 rpm – Drushless DC motor

Voltage

AC90V – 240V / 50Hz – 60 Hz

Operating Temperature

-20 C° ~ +70 C°

Manual Force

<40N <50N
