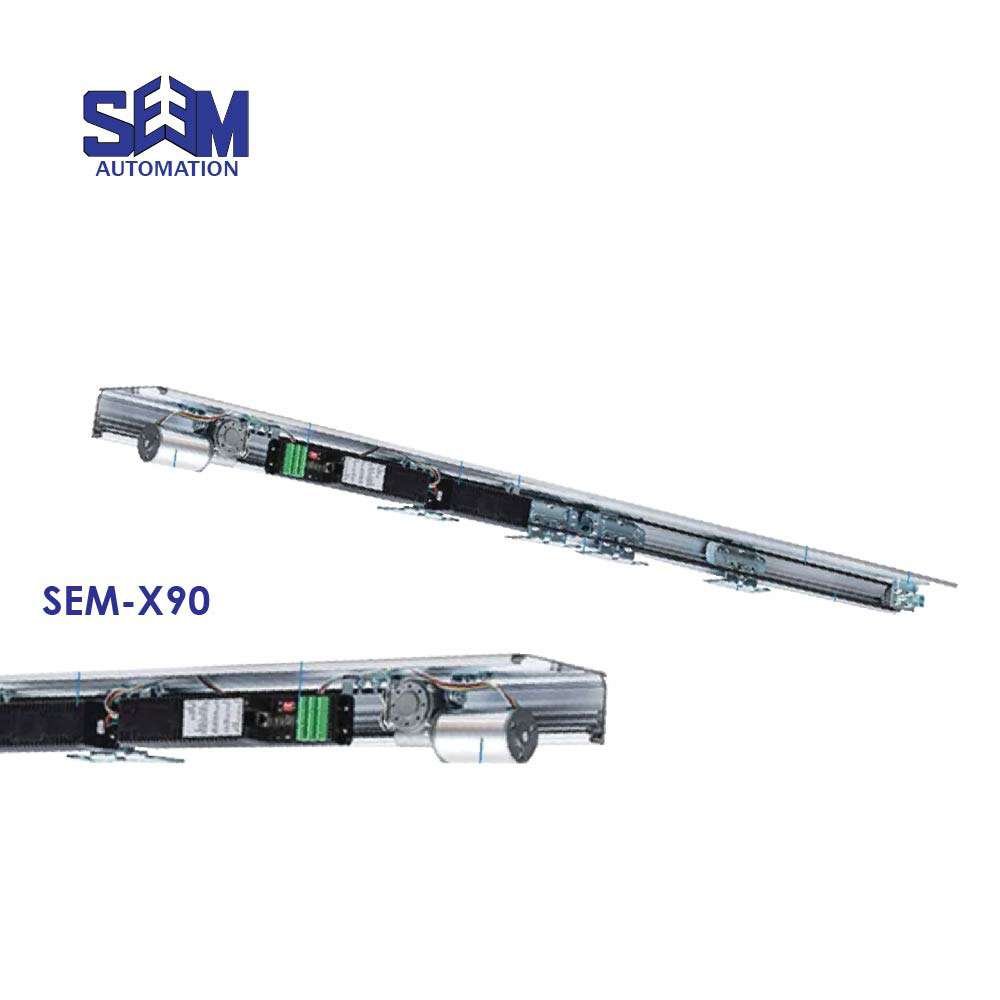

Commercial Sliding Automatic Door – SEM X90

Introducing the SEM X90, an efficient door control system with a powerful 55W brushless motor, handling doors up to 150 kg. With a max opening speed of 2300 rpm/min and advanced safety features, it ensures smooth and quiet operation.

Download Product Brochure

Free shipping on all orders over  ฿ 20.000

  • Same Day delivery in all Bangkok area
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

SEM X90 Door Control System with brushless motor and advanced features.
Commercial Sliding Automatic Door – SEM X90

Enter your contact details, and our team will get back to you promptly.

Commercial Automatic Door SEM X90

Experience unparalleled efficiency with the SEM X90 Door Control System, designed to handle heavy doors with ease. With a robust 55W brushless motor, this system can support doors weighing up to 150 kg, making it ideal for commercial applications.

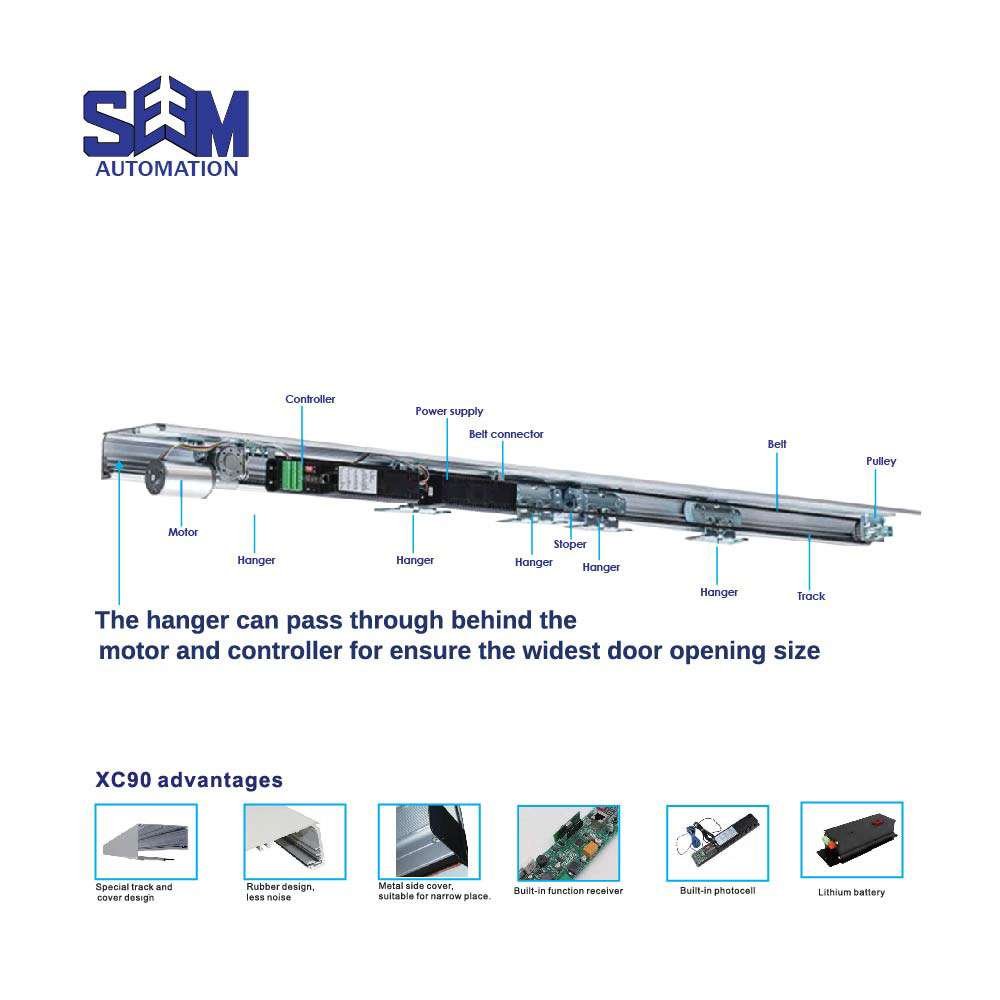

Key Features of Commercial Automatic Door SEM X90

  • Powerful Brushless Motor: Operates effectively with a maximum opening speed of 2300 rpm/min, ensuring quick and smooth access.
  • Advanced Three-Wheel Design: The double track system provides enhanced stability and performance.
  • Safety First: Equipped with anti-clamp technology for safe operation during both opening and closing.
  • Noise Reduction: Features a rubber strip in the track and a brush line in the rail to minimize noise and keep the system clean.
  • Flexible Integration: Includes function terminals for electronic locks, access keypads, and multiple remotes, supporting up to 15 pieces per receiver.
  • User-Friendly: The built-in receiver for photocell and remote control enhances convenience and usability.

Why Choose Commercial Automatic Door SEM X90?

The SEM X90 Door Control System is your ideal choice for efficient and safe door operation. With its powerful motor, advanced features, and focus on safety and convenience, it seamlessly integrates into any environment, providing a superior access control solution.

ข้อมูลเพิ่มเติม

Model

SEM – X90

Max Weight (single door)

150 Kg

Max Weight (Double door)

2 x 140 Kg

Door Leaf Width

500 – 2000 mm

Opening speed

150 ~ 500 mm/s (Adjustable)

Closing speed

150 ~ 500 mm/s (Adjustable)

Holding Time

0 ~ 60s Adjustable

Motor Details

24V 55W 2300 rpm – Drushless DC motor

Voltage

AC100V – 240V / 50Hz – 60 Hz

Operating Temperature

-10 C° ~ +70 C°

Manual Force

<50N (single) <60N (double)
