Commercial Sliding Automatic Door – SEM 200B

Introducing the SEM 200B, a powerful door control system featuring a 100W brushless motor, capable of handling doors up to 200 kg. With a max opening speed of 2300 rpm/min, it ensures smooth and reliable operation.

Download Product Brochure

Free shipping on all orders over  ฿ 20.000

  • Same Day delivery in all Bangkok area
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

SEM 200B Door Control System with powerful brushless motor and advanced features.
Commercial Sliding Automatic Door – SEM 200B

Enter your contact details, and our team will get back to you promptly.

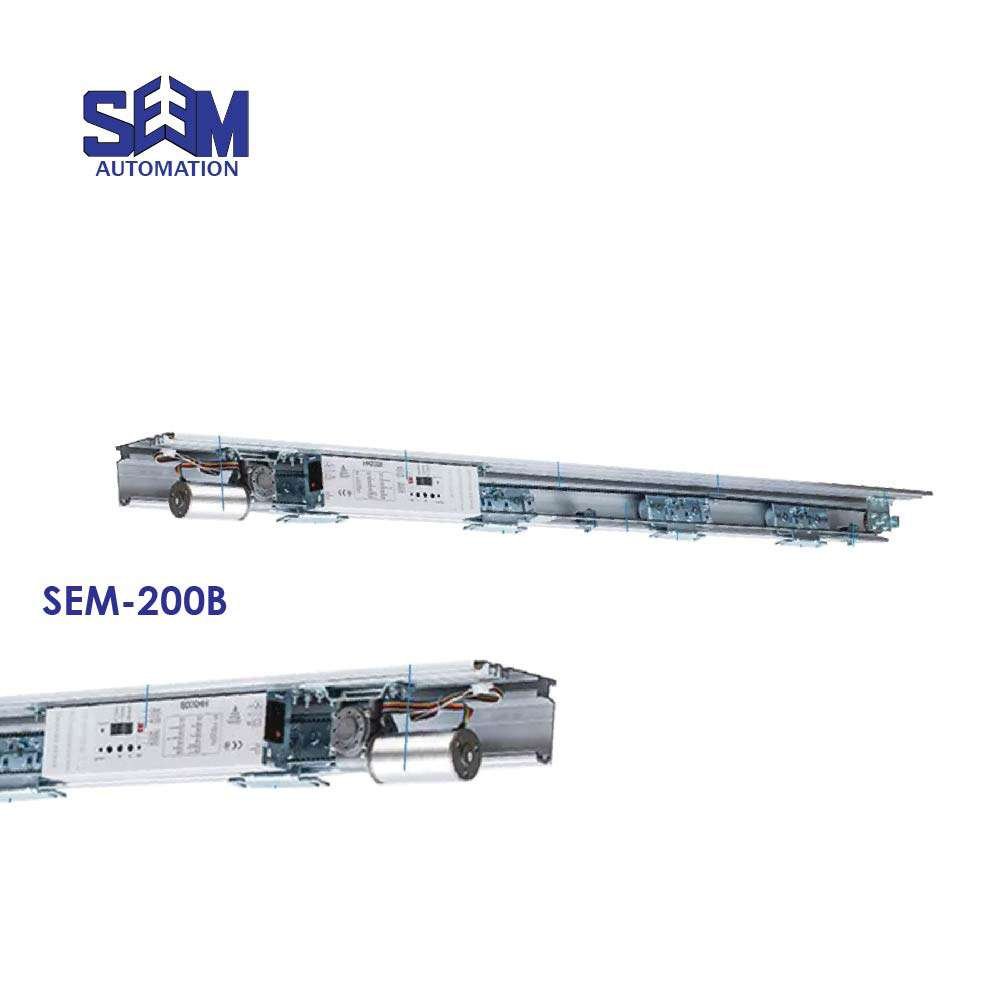

Commercial Automatic Door SEM 200B

Experience the power and efficiency of the SEM 200B Door Control System, engineered to handle heavy doors with ease. With a robust 100W brushless motor, this system supports doors weighing up to 200 kg, making it suitable for commercial use.

Key Features of Commercial Automatic Door SEM 200B

  • High-Power Brushless Motor: Operates smoothly with a maximum opening speed of 2300 rpm/min for quick access.

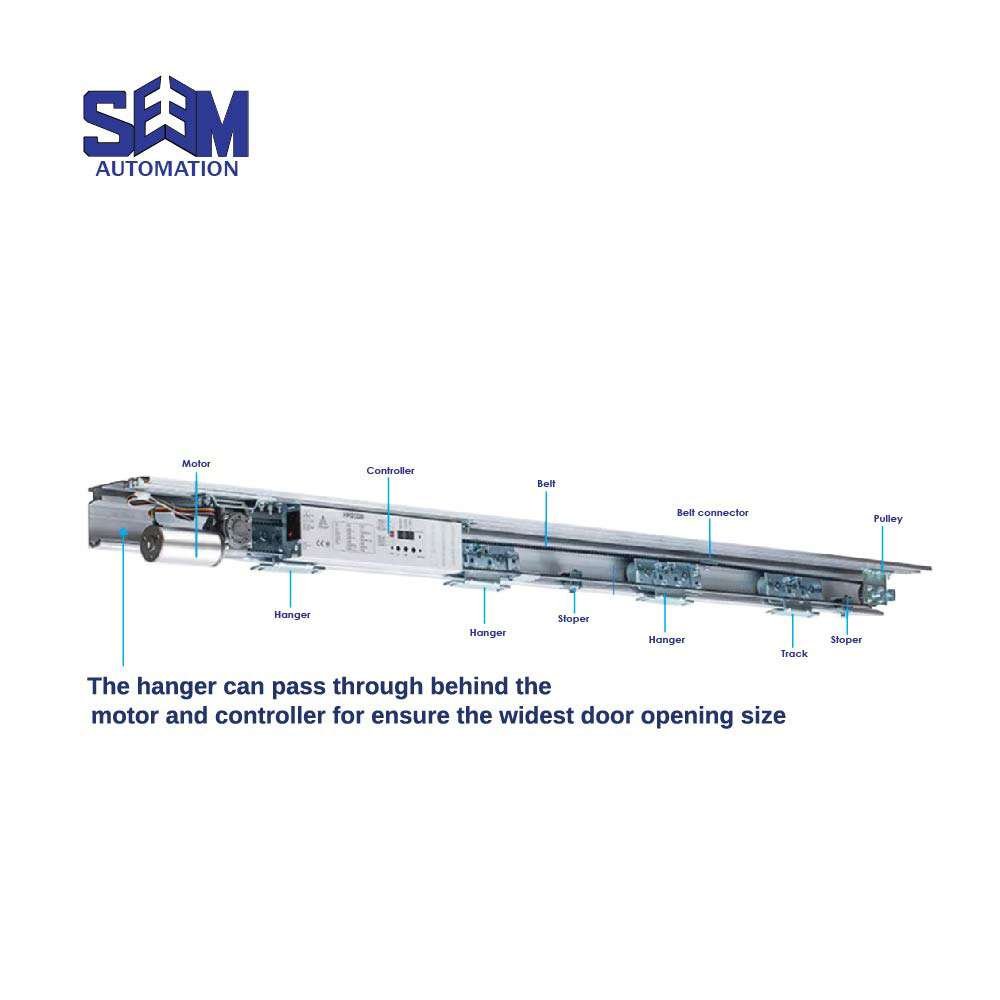

  • Innovative Design: The three-wheel design and double track ensure stability and smooth operation.

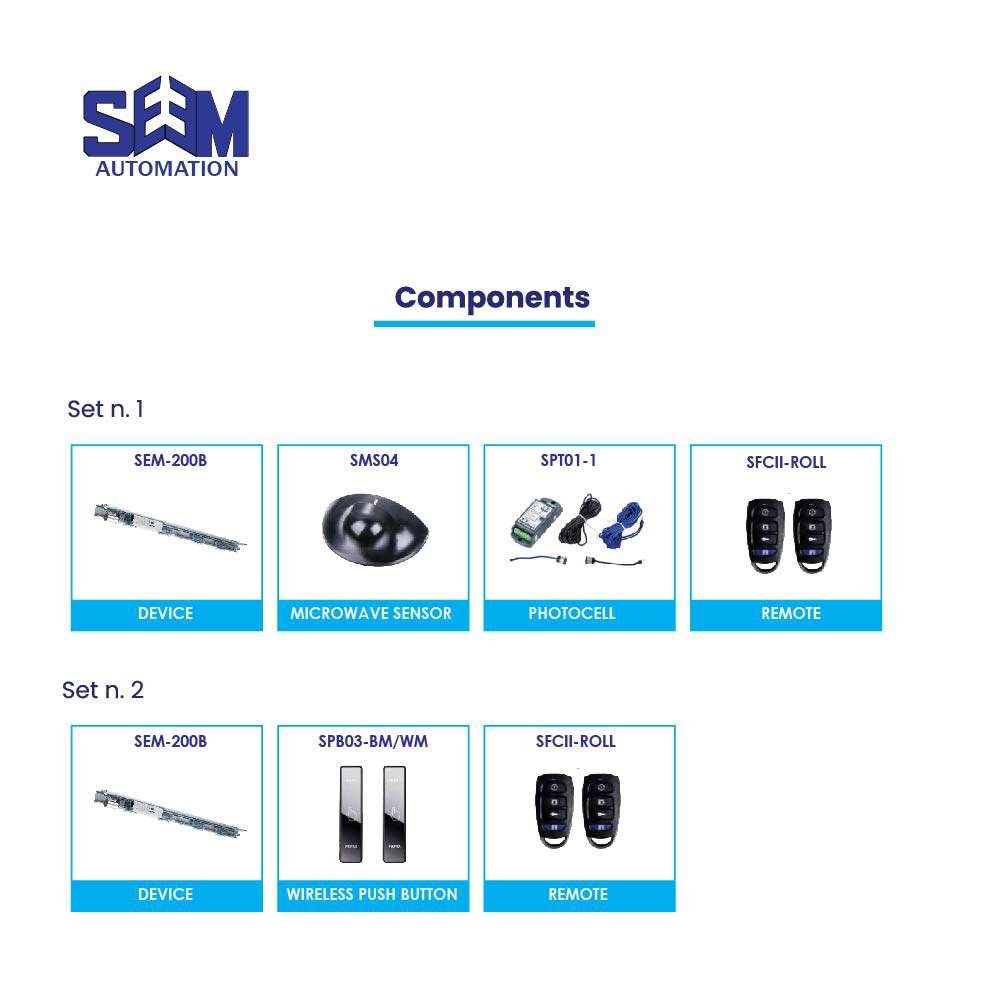

  • Comprehensive Functionality: Equipped with function terminals for electronic locks, access keypads, and multiple remotes, accommodating up to 15 remotes per receiver.
  • Versatile Integration: Built-in remote control receiver and photocell modules enhance usability and adaptability to various setups.
  • Extra Terminals: Includes additional photocell and internal photocell terminals for increased safety and functionality.

Why Choose Commercial Automatic Door SEM 200B?

The SEM 200B Door Control System is the ultimate choice for reliable and efficient door operation. With its powerful motor, advanced features, and focus on adaptability, it integrates seamlessly into any environment, providing a superior access control solution for your heavy-duty needs.

Additional information

Model

SEM – 200B

Max Weight (single door)

200 Kg

Max Weight (Double door)

2 x 180 Kg

Door Leaf Width

500 – 2000 mm

Opening speed

150 ~ 550 mm/s (Adjustable)

Closing speed

150 ~ 550 mm/s (Adjustable)

Holding Time

0 ~ 60s Adjustable

Motor Details

24V 100W 2300 rpm – Drushless DC motor

Voltage

AC100V – 240V / 50Hz – 60 Hz

Operating Temperature

-10 C° ~ +70 C°

Manual Force

<94.5N (single) <99.1N (double)
